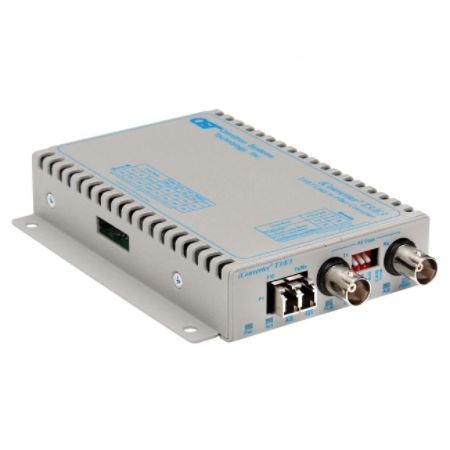

iConverter T3/E3 Fiber Media Converter Coaxial LC Single-Mode 30km Wide Temp Item # 348282
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
348282
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs, multiplexers, routers and video servers via fiber. T3/E3 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.
- Supports B3ZS for T3 (DS3) and HDB3 for E3 codes
- Framing independent; supports framed or unframed and channelized or fractional unchannelized data
- Supports RG-59 75 ohms coax interface with shorthaul and long-haul build-out options
- Features user-selectable local and remote loopback modes and Force 1s (AIS) to Coax and Fiber
- Management is available with the addition of a management module to the chassis
- Modules are hot-swappable and can be used in the 19-Module, 5-Module, 2-Module or 1-Module iConverter chassis
- LED displays for immediate visual status of each port
- Lifetime Warranty and free 24/7 Technical Support
Product Details
| Item # | 348282 |
| Manufacturer # | RV8314 |
| Fiber Optic Wavelength | 1310 nm |
| Product Series | T3/E3 |
| height | 1 in. |
| Additional Information | Input Voltage:5-32VDC via 2.5mm barrel (0.3A @ 9VDC); 100-240VAC/50 to 60Hz (0.05A @ 120VAC) |
| LC Port Type | Duplex |
| Certifications & Standards | Compliance: UL; CE; FCC Class A |
| Product Line | iConverter |
| width | 3.1 in. |
| package contents | iConverter T3/E3 LC Single-Mode 30km Wall-Mount Standalone Univ. AC Powered Wide Temp; Univ. Power Supply - 100-240Volt / 50-60Hz; User manual |
| depth | 4.8 in. |
| Product Name | iConverter T3/E3 LC Single-Mode 30km Wall-Mount Standalone Univ. AC Powered Wide Temp |
| Number of LC Ports | 1 |
| manufacturer | Omnitron Systems |
| weight | 1 lb |
| Maximum Distance Supported | 18.64 Mile |
| brand name | Omnitron Systems |
| USB | No |
| Digital Audio/Video | No |
| Number of BNC Ports | 2 |
| Digital Audio | No |
| Input Voltage | 240 V AC |
| Media Type Supported | Coaxial; Optical Fiber |
| Package Type | Retail |
| Total Number of Ports | 3 |
| DVI | No |
| Management Port | No |
| Parallel Port | No |
| Fiber Mode Supported | Single-mode |
| form factor | Rack-mountable; Desktop; External; Wall-Mountable |
| warranty length | limited lifetime |
| model name | 8747-1-x |
| Network Technology | T3/E3; DS-3 |
